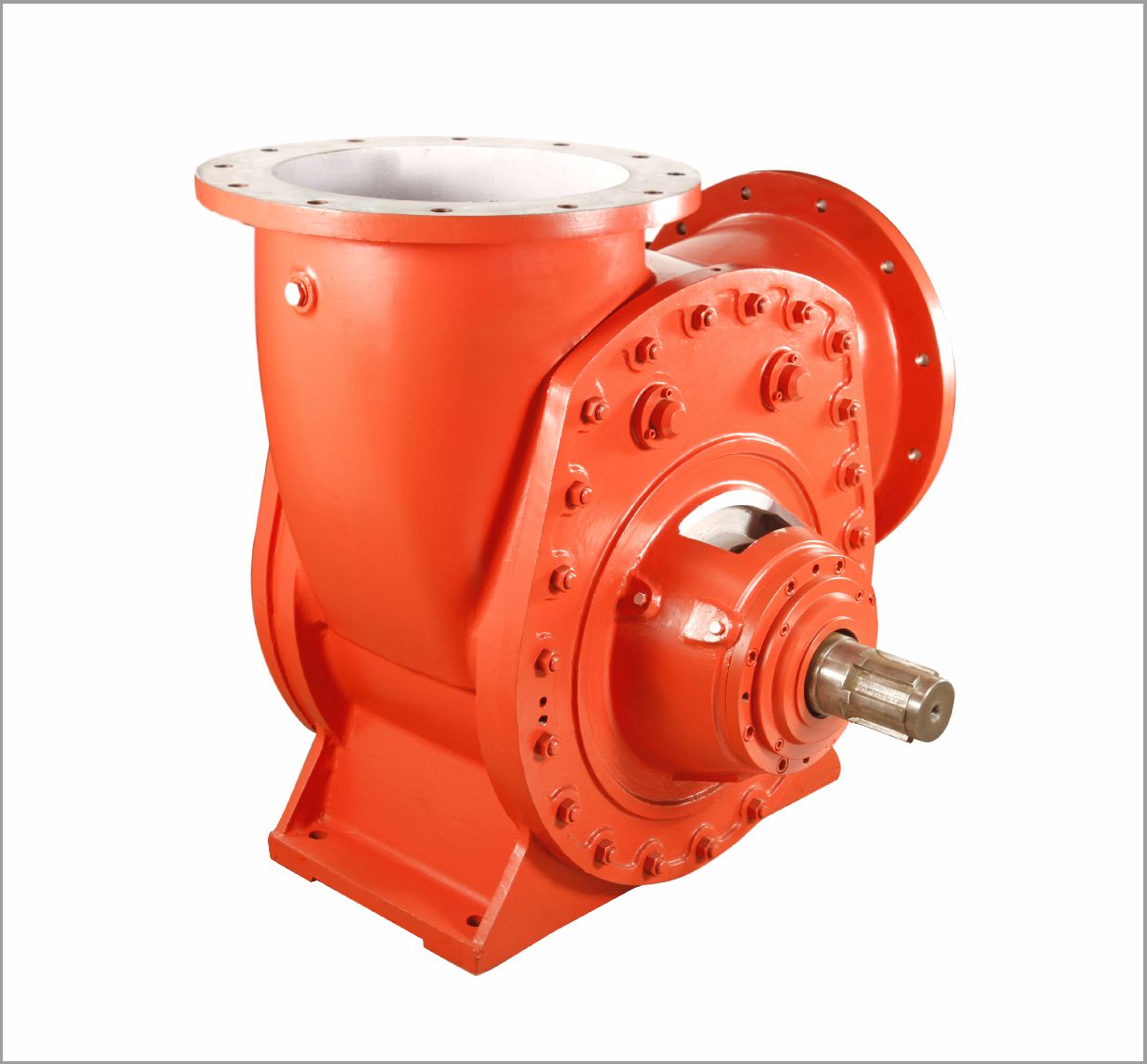

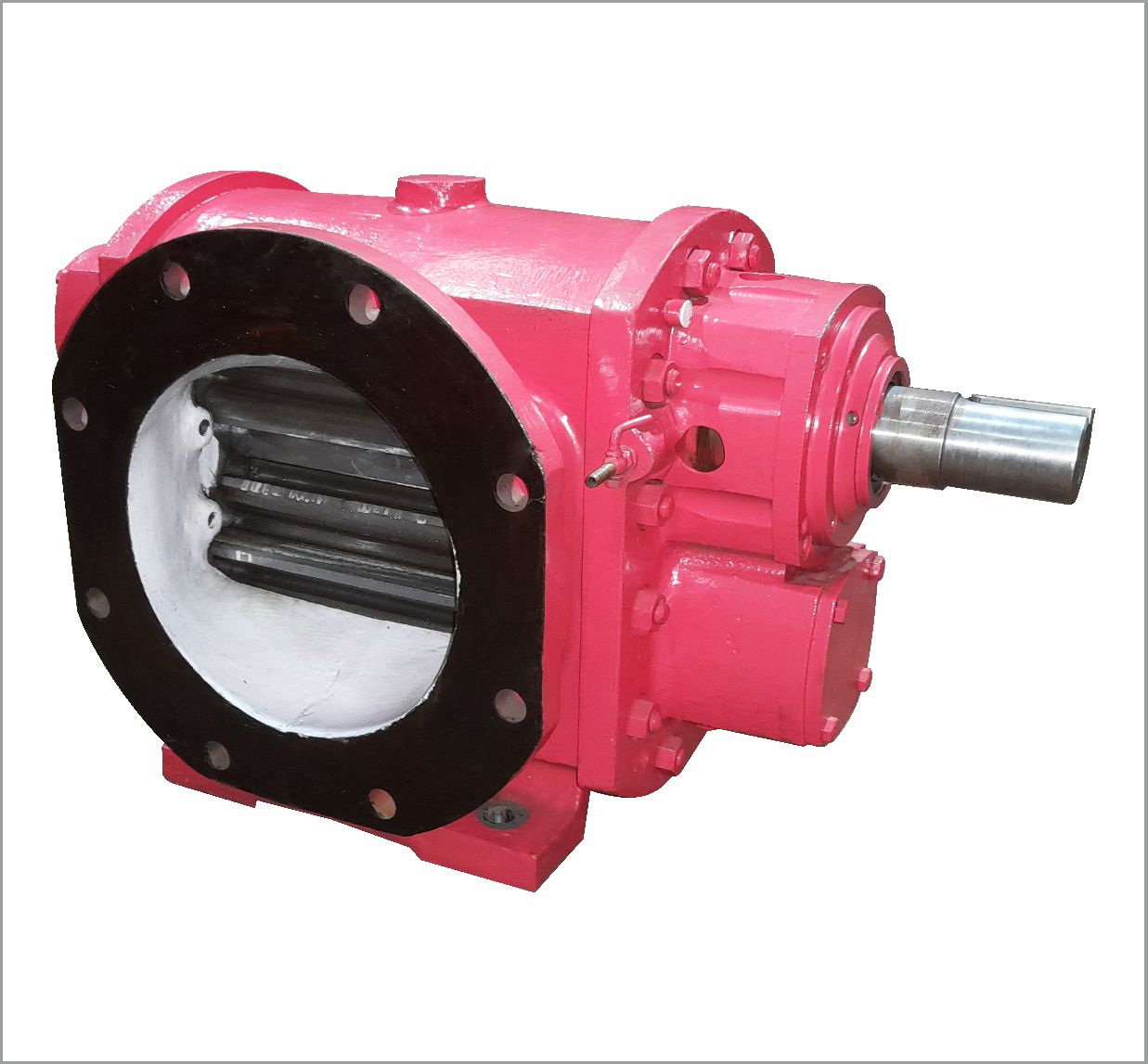

Twin Rota Magma Massecuite Pump

Model – TR

Operating Data

  • Pump Size: 8 Inch to 18 Inch
  • Capacity: Up to 180 Tons/hr
  • Pressure: Up to 7 Bar
  • Temperature: Up to +90 °C
  • Viscosity: above 5000 cst
Category:

Application:

Sugar Industry: Massecuite A, Massecuite B, Massecuite C, Magma and Dry Seed.



Advantage:

  • Reduced Maintenance Down Time
  1. Replace seal without opening pump cover.
  2. Quick release sleeve with spline between shaft and coupling.
  • Extended life of Pump
  1. Twin rotor reduce shaft load by 30 to 40%.
  2. Cooling arrangement for Zero-Leak face seal.
  3. Cooling system for NDE bush.
  • Operational Efficiency
  1. Smooth Massecuite discharge flow with four strokes in one rotation.
  2. No shock waves (In Delivery Pipe-line).
  3. Less haunting in ampere meter.
  4. High power saving with reduced shaft load.



Our focus is to develop cutting-edge solutions for traditional pumping processes. To meet the growing demand for energy-efficient pumps, we are introducing a double-rotor pump with a power efficiency of 20 to 30 percent greater than single-rotor pumps.
